Marvin Ultimate Inswing / Outswing doors manufactured 1/17/2000 to present.
Active Multi-Point lock body, used with Concealed Rods that screw into top and bottom.
DOES NOT include rods, lock case only.
American 5 pin cylinder
Handle Spacing: 3-5/8 inch (92mm)
Backset: 2-3/8 inch (60mm) with faceplate (measures 2-5/16 as shown)
Tapered Deadbolt throw 1 inch (25.4mm)
Markings: Patent NO. 6,209,931
Marvin Part Number 05700130
Marvin Related Parts:

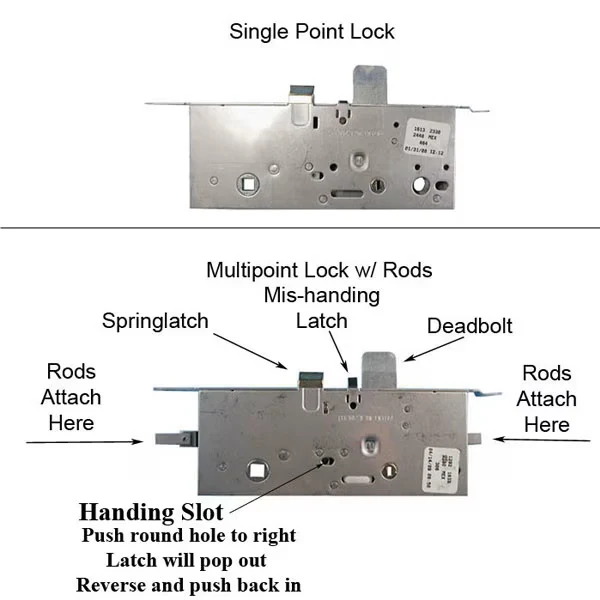

40160 – Single point lock, no rods
395040 – Face plate for individueel point lock
How to Operate Lock:
1. Lift handle to Extend vertical shootbolt rods
2. Turn Key or Thumbturn to extend deadbolt and secure rods in locked position
3. Reverse process to unlock door.
Change Handing:
1. Insert screw driver into slot behind latch
2. Pull down on handing release, latch pops out
3. Rotate latch and push back into lock case
Always c
