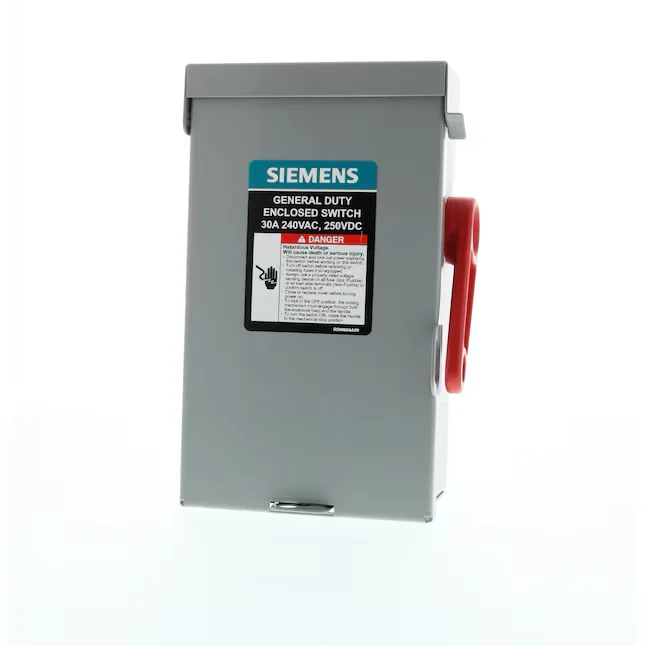

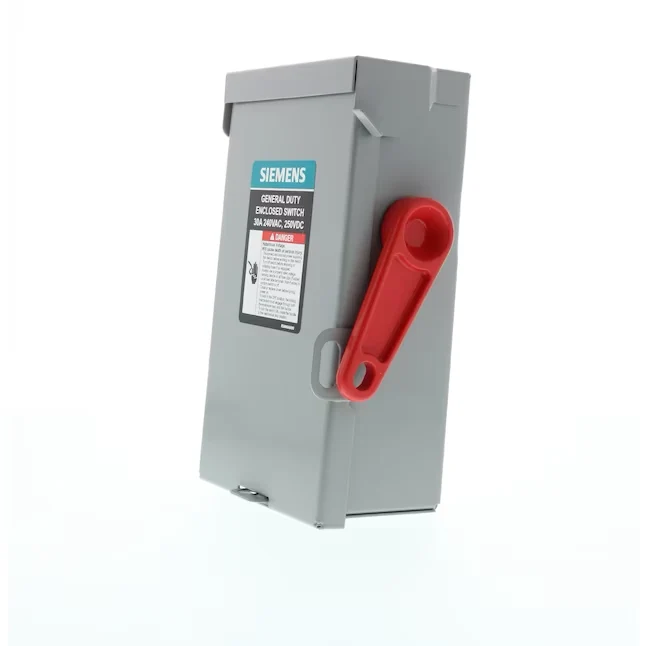

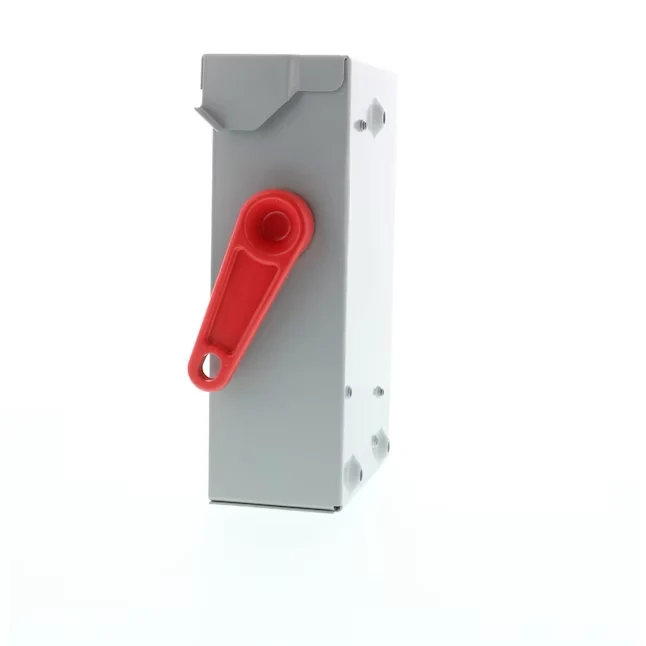

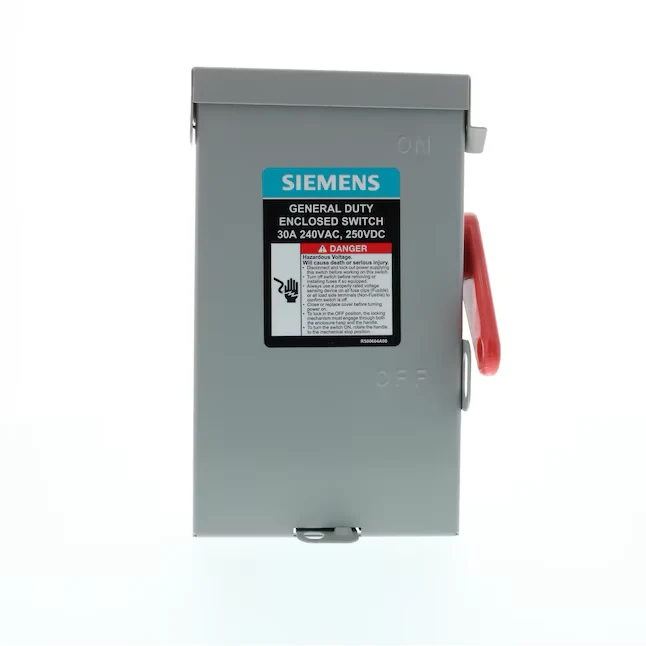

Siemens 30 Amp 2-Pole Fusible General-duty Safety Switch Disconnect

Siemens 30 Amp 2-Pole Fusible General-duty Safety Switch Disconnect ✓ Langdurige batterijduur ✓ Robuust en duurzaam ontwerp ► Laat spanning direct verdwijnen

General Duty Safety Switches are intended for applications where vast performance and continuity of service are needed. But where duty requirements are not severe and usual service conditions prevail. These switches are intended for use primarily with supply circuits rated 240-Volt AC or less where the available fault current is less than 100,000 Amp when used with Class R or T fuses or 10,000 Amp max when used with Class H fuses.

• Oversized lugs for enhanced wire range and convenient termination

• Features a visible blade and double break switching action

• Ideal for use with supply circuits rated 240-volt AC or less

• 30-Amp, 2-Pole, 3-Wire, 240-Volt, fusible safety switch with a factory installed neutral

• Quick-make, quick-break operating mechanism that ensures positive operation

• Generous wiring gutters that meet or exceed NEC wire-bending space requirements

• Highly visible red handle
